The Story

For cable seals from 9-14mm (0.16"-0.35") and connectors up to Ø30mm (1.18"). The aesthetic dome-shaped profile provides a stronger, impact-resistant design, and captive nuts in the base make assembly easy.

Multi-Functional Dome Shape
The aesthetic dome-shaped profile provides a stronger, impact-resistant, and additional water shield.

Watertight Installation
The tapered bung is supplied with a closed base seal, to form a watertight seal, ensuring an IP68-rated watertight seal.

Easy and Reliable Installation
Captive nuts make for easy assembly and also allow reliable repeat installations. Each unit is supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.

Split Bungs
The split-seal option makes installation even easier, as it does not require connectors up to Ø30mm (1.18") to be removed during installation.

Key Features

  • IP68 waterproof rated
  • Made from premium marine-grade UV-stable materials
  • Includes 316 stainless steel fixings and a waterproof 3M gasket
  • Captive nuts ensure an easy and reliable repeat installation
  • No messy sealant on bungs
  • Split bungs for ease of installation
  • Install connectors up to Ø30mm (1.18") in diameter
  • Fully customizable with self-drill bung options

Technical Specification

Material High Impact Plastic
Height 20.5mm (0.81")
Colour Black
Diameter of Cable Seal 59mm (2.32")
Diameter of Cable 9-14mm (0.35-0.55")
Bungs  1 x 9mm (0.35") / 1 x 11mm (0.43")  / 1 x 13mm (0.51") / 1 x Self Drill

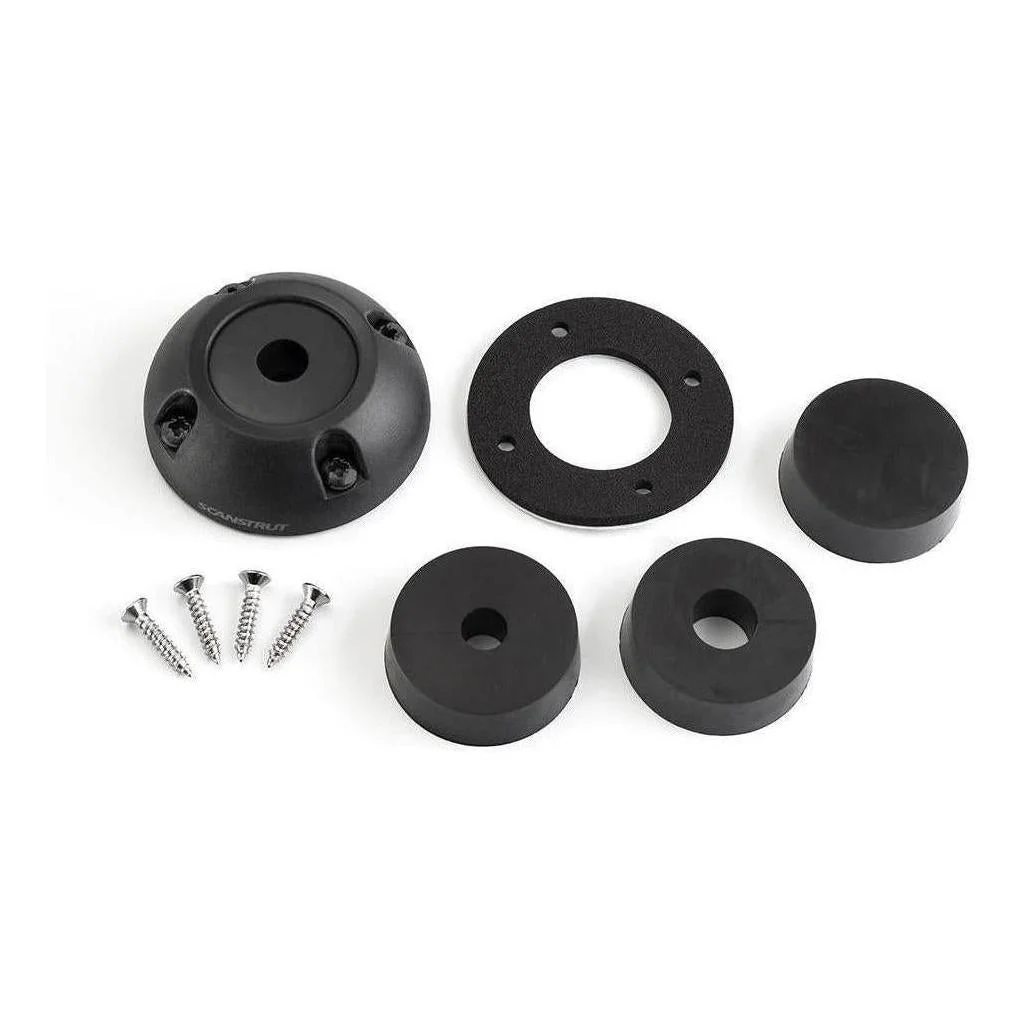

Scanstrut Vertical Entry Cable Seal Suits 9 - 14mm Cable Black - Image 2
